Pattern 50

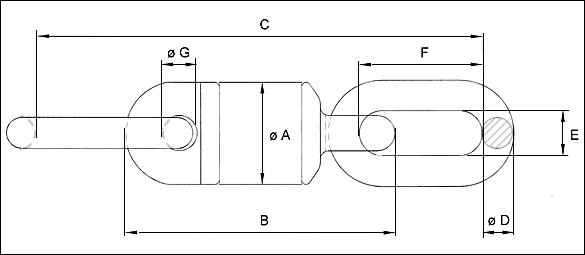

enclosed thrust bearing pattern 50

WWL
ØA
B
C
ØD
E
F
ØG
WT.Kg's
SS code
3 tonne
74
209
311
22
32
86
25
5
040350
5 tonne
89
220
371
25
38
102
29
8
040550
10 tonne
143
314
530
38
56
146
45
27
041050

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1  E.g. WLL 3t     Proof Loaded 6t  Break Load 18t




Options Available:

  • Finish ; Self colour or galvanised
  • Can be supplied without links
