Pattern 49

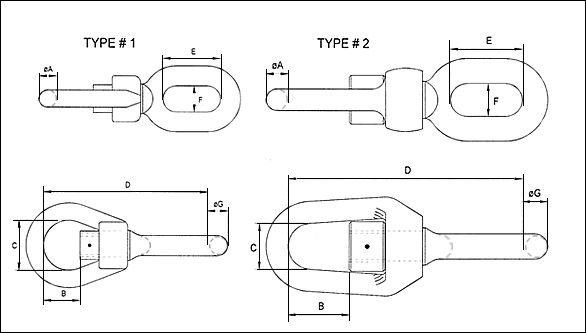

bow and oval eye swivel pattern 49

TYPE
ØA
B
C
D
E
F
ØG
WLL
Wt.-KG's
#1
17
50
50
185
57
28
19
3 t
2.5
#1
26
52
75
220
75
38
27
6 t
5
#1
30
60
100
275
85
40
30
10 t
7.5
#2
34
96
76
390
100
56
41
14 t
16
#2
39
116
82
410
117
60
48
20 t
25
#2
49
137
100
500
150
74
56
25 t
40

WLL = Working Load Limit (straight pull only)
Factor Of Safety 5 : 1  E.g. WLL 25t     Proof Loaded 50t  Break Load 125t.




Options Available:

  • Finish : Hot dip galvanised to BS EN1461.
  • Other sizes available on request.
